Forged Steel Pipe Fitting:

Socket Weld Forged Pipe Fittings, Threaded Forged Steel Pipe Fittings

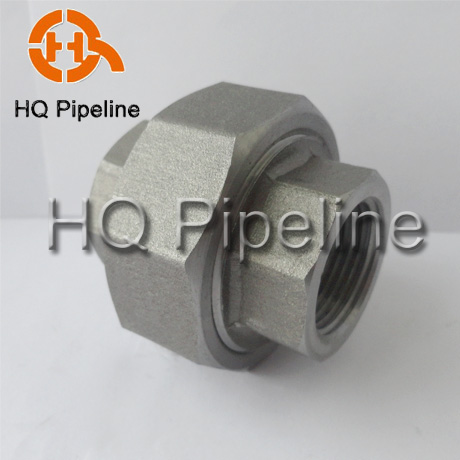

1. Forged Fittings Type: Elbow, cross, street elbow, tee, coupling, half coupling, cap, plug, bushing, union, outlet, sage nipple, bull plug, reducer insert, pipe nipple etc.

2. Connection: Socket Welded, Threaded

3. Size Range: 1/8" - 4"(6mm - 100mm)

4. Pressure Rating:

Threaded Forged Pipe Fittings: 2000LBS, 3000LBS, 6000LBS

Socket welding Wog 3000, 6000, 9000 LBS

5. Specifications:

1) Standard: ASME B 16.11, MSS-SP-79\ 83\ 95\97

2) Material: ASTM A105, ASTM A182(F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91).

3) Size of raw material: Dia. 19-85mm round bar.

6. Technology: Forged

7. Packing: Wooden cases or wooden pallet or as per customers requirement

8. Delivery Time: 25 days after order conformed

9. Payment: By T/T or L/C

10. Applications range: Petroleum, chemical, machinery, electric power, shipbuilding,

Papermaking, construction etc
